Quality Stage Rental LED Display & Outdoor Rental LED Display Manufacturer

Customized Outdoor Video Display Screens , P8 Led Display Board For Advertising factory

Product Details:
Place of Origin: China
Brand Name: HJY
Certification: CE FCC
Model Number: P6
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Packaging Details: wooden case or flight case
Delivery Time: 15-20days afte receiving deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000sqm per month

Detail Information

Detail Information

Cabinet Size: 960*960mm Cabinet Material: Iron Driving Mode: 1/8 Scan IC: MBI5124 LED Chip: Kinglight LED Specification: SMD2525 Control System: Linsn Or Nova Brightness: 6000cd/sqm Warranty: 2 Years Life Span: 100000hours

Product Description

Product Description

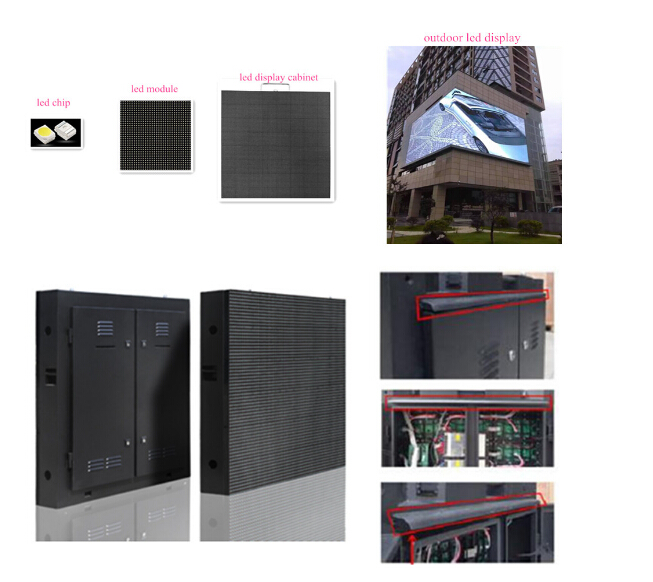

Customized outdoor LED Advertising Display P6 full color led sign





Product description



1. High refresh rate: Over 1920Hz/s, no scan lines when taking video and pictures .

2. IP65 standard,dustproof and waterproof .No problem to work for long time outside.

3. High brightness, over 5500 nits, can work well in day time even under direct sunshine

4. Packed by flight cases , very easy for transportation



Outdoor led screen can work under the sun for high brightness and large viewing angle with a certain function of windbreak, rainproof and waterproof, which is widely used as outdoor advertising and information media at station, square and shopping mall. Outdoor led screen can be divided into pillared screen, wall-mounted screen and floor-standing screen etc.



Pixel Pitch 6mm
LED Encapsulation MBI5124/1R1G1B
LED Chips Epistar
Cabinet resolution 96dots*96dots
Cabinet size(mm*mm) 960mm768mm
Pixel density 27777dots/m²
Cabinet weight 11kg/pcs
Cabinet's material Aluminum / Iron /Die-casting
Cabinet Color RED / BLUE / BLACK/ORANGE
Drive Method: 1/8 Scanning
Brand of power supply CL 5V~40A
Gray Scale Recommended 256 level
The best viewing angle Horizontal:140 Vertical:90
Max Power Consumption 500W/ m²
Control Mode Video frequency synchronization
Optimal Viewing Distance ≥6m
Brightness ≥6000cd/m²
Blind Spot Rate <0.0001
Brightness Control 0-255 Grade
Contrast 100 levels adjustable
Earth Leakage Current <2mA
MTBF >5000Hours
Lifespan >100000Hours
Power Supply Mode AC220V/50HZ or AC110V/60HZ
Protection Level IP65
Humidity 0%~90%
Operating System Windows98/me/2000/NT/XP
Operating temperture Operation:-30°C~+60°C



Our service



Pre-sales service :
Our team design and make solutions based on different requirements from different customers, what you think is what we can do.

After-sales services:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We provide one professional engineer to one customer to keep fastly reply.

Installation Service:
1. We provide detailed CAD drawing to customer for preparing metal structure.
2. We could dispatch our engineer to your place , guide installation and free training.
3. Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements


FAQ


Q1, How to arrange payment?

Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable



Q2, What is our warranty?

Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well



Q3, How to be our distributor?

To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time



Q4, How to maintence led screen?

In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules



Q5, How to select led type?

In usually,

For indoor stage will be select indoor die casting P2.5 P3 P3.91 P4 P4.81 P5 P6,P10

For outdoor stage will be select P4 P4.81 P5 P5.95 P6 P6.25 P8 P10

For fixed installed led screen, can select P2.5 P3 P4 P5 P6 P10

For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP4 P5 P6 P8 P10,DIP P8 P10 P16
