Detail Information
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HJY |
| Certification: | CE FCC |
| Model Number: | P3 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | negotiable |
| Packaging Details: | flight case |
| Delivery Time: | 15-20 days after receiving deposit |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
Detail Information
Product Description
Product Description
mirror led screen P3 indoor advertising poster mirror led display
Specification Parameter
| Item name | P3 |
| Pixel pitch | 3mm |
| Module size(W*H) | 192mm*192mm |
| pixels Density | 111111dots/sqm |
| Pixel configuration | SMD2121 |
| Pixel resolution | 64*64dots/64*32dots |
| Color configuration | 1R1G1B |
| Drive mode | 1/32 Scan |
| Cabinet size | 576mm*1920mm |
| Cabinet Weight | 32 kg |
| Pixel per cabinet | 192*640dots |
| Best viewing distance | 3-40m |
| Best viewing angle | 1240°(H) /90°(V) |
| Temperature | storage: - 30°C~+ 70°C |
| working: '- 20°C~+ 50°C | |
| Operation humidity | 10 ~ 9%RH |
| Working voltage | AC110/220V ± 10%,50HZ |
| Aver Consumption | 300 w/sqm |
| Max. Consumption | 1000 w/sqm |
| Current | ≤20mA(single LED) |
| Operating system | WIN 98/2000/NT/XP/Win7/Win8/Win10 |
| control method | Synchronization/ Asynchronization/3G/WIFI/USB |
| Driving device | Constant Current |
| Refresh frequency | ≥1000Hz/s |
| Waterproof level | IP34 |
| Blind spore rate | <1/10000 |
| Frame rate | 120frame/s |
| Grey scale/colors | 256 levels of each color(R/G/B)/ 16.7M colors |
| Brightness | ≥2400 cd/sqm |
| Brightness adjustment | 255 levels of each color(R/G/B) by software |
| Video Signal mode | RF,S-video,RGB,RGBHV,YUV,YC etc |
| Control system | DVI display card + full color controller card |
| MTBF | ≥10, 000 hours |
| Life span | ≥100, 000 hours |
| Flatness | Tolerance of pixel pitch≤0.3mm |
| Tolerance of modules between ≤1.5mm | |
| Certidicate | CE ROHS |
Module picture

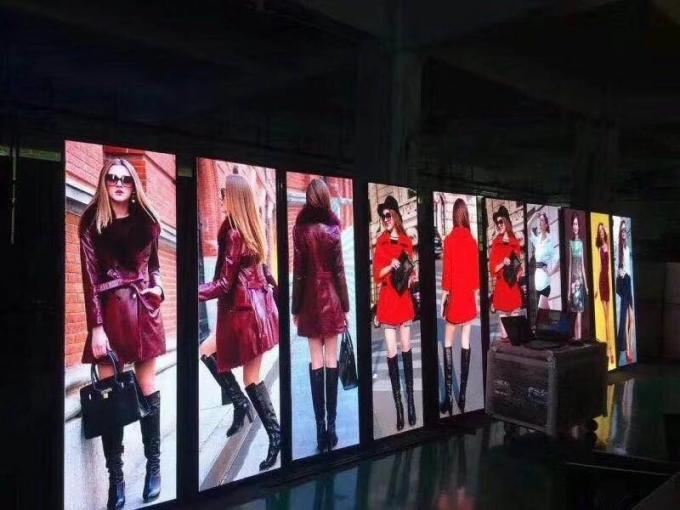

Mirror led display screen pictures
Trade Information :
1). Trade terms: FOB,CIF,EXW
2). Payment terms: T/T, Western Union, Paypal, Escrow, Moneygram
3) Payment condition: T/T ,30% deposit before production, 70% balance before delivery
4). Production lead timeless 20 sqm: 15days, more than 50 sqm:25days. Sample can be delivered within 7days
5). Shipping: by sea, by air and by express delivery
6). Shipping port: Shenzhen, Mainland China
